Oracle APEX Template Component Plugin

Oracle APEX Interactive Reports often display boolean or flag columns (like active_yn, enabled_yn) with plain text values "Y" or "N". While functional, this approach lacks visual clarity and modern UX standards.

In this post, we'll explore how to create a custom template component plugin that automatically displays green checkmarks (✓) for "Y" values and red crosses (✗) for "N" values in your APEX reports, providing instant visual feedback to users.

Complete Implementation on GitHub - Full working code examples

What is a Template Component Plugin?

A Template Component Plugin in Oracle APEX is a reusable UI component that can be applied to report columns, regions, or other UI elements. It uses APEX's declarative template syntax to transform data values into custom HTML output, allowing developers to create consistent, branded user interfaces without writing complex JavaScript.

This implementation creates a template component plugin that transforms Y/N values into intuitive visual indicators:

✅ Green checkmark (✓) for "Y" values - indicating active, enabled, or positive states
❌ Red cross (✗) for "N" values - indicating inactive, disabled, or negative states

Visual Result

The plugin displays values as shown in the following table:

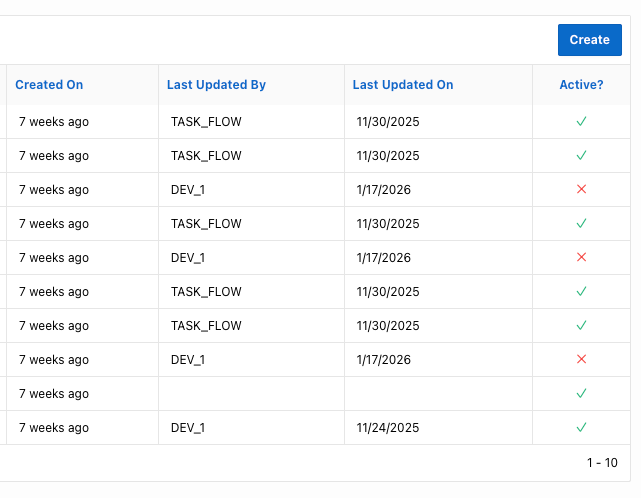

Report Result with Y/N Icons

Installation Instructions

Step 1: Install the CSS File

First, upload the y_n.css file as a workspace static file at css/y_n.css. The file contains the following styles:

.icon-check {
  color: #10b981;
  font-size: 0.9rem;
}
.icon-x {
  color: #ef4444;
  font-size: 0.9rem;
}

Step 2: Install the Template Component Plugin

Install the template component plugin by running the template_component_plugin_y_n.sql script:

-- Run the plugin installation script
@template_component_plugin_y_n.sql

This creates a plugin named Y_N that can be used as a column template in Interactive Reports.

Usage in Interactive Reports

Applying the Plugin to a Column

Navigate to your Interactive Report in Page Designer
Select the column you want to format (e.g., active_yn)
In the column properties, go to Column Formatting → Template
Select Y_N from the Template Component dropdown
In the Value attribute, select the column containing your Y/N value (typically the same column)

Example

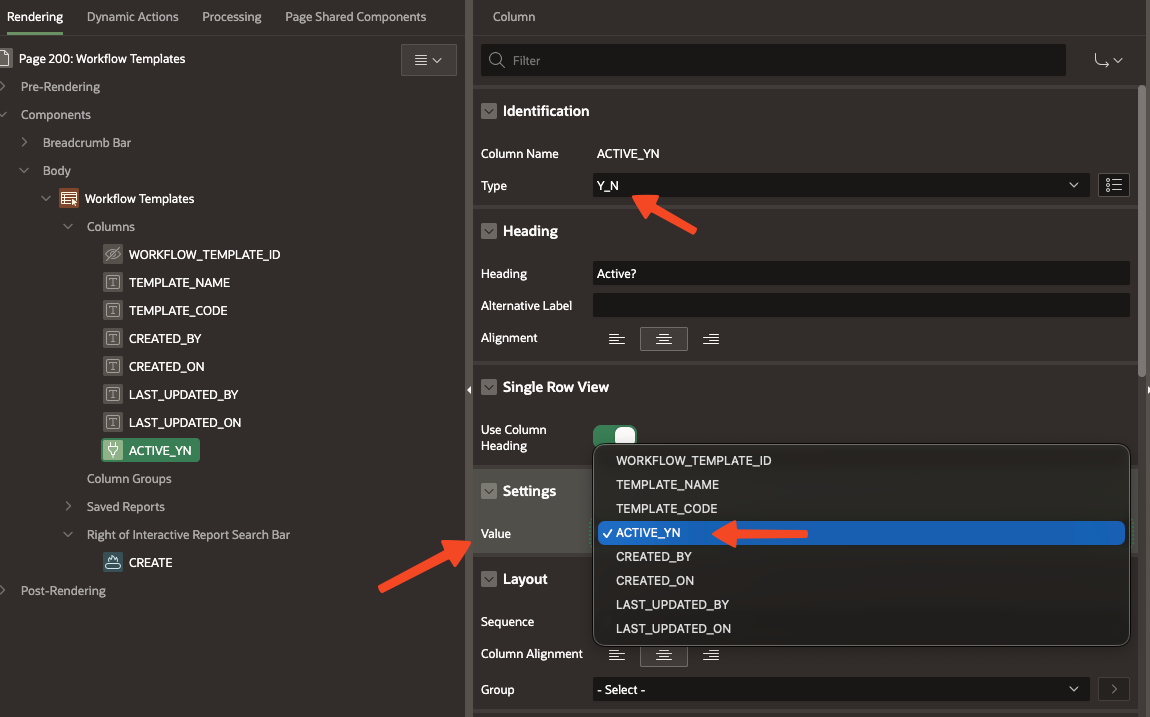

Applying Y_N Template Component

After applying the Y_N template component to the active_yn column, the values will automatically display as green checkmarks (✓) for "Y" and red crosses (✗) for "N".

Implementation Details

Template Component Structure

The plugin uses APEX's declarative template syntax to conditionally render icons based on the column value: template_component_plugin_y_n.sql

{if APEX$IS_LAZY_LOADING/}
  <div>#VALUE#</div>

{else/}

  {if ?VALUE/}

      {case VALUE/}
        {when Y/} <span class="icon-check" title="#VALUE#">✓</span>

        {when N/} <span class="icon-x">✗</span>
        {otherwise/}
      {endcase/}

  {endif/}


{endif/}

CSS Styling

The CSS file provides color coding for immediate visual feedback:

Green (#10b981): Tailwind's emerald-500 color for positive/active states
Red (#ef4444): Tailwind's red-500 color for negative/inactive states
Font Size (0.9rem): Slightly smaller than default text for better proportion in tables

Customization Options

Changing Colors

To modify the colors, edit the css/y_n.css file:

.icon-check {
  color: #22c55e;  /* Change to your preferred green */
  font-size: 0.9rem;
}
.icon-x {
  color: #dc2626;  /* Change to your preferred red */
  font-size: 0.9rem;
}

Files in this post:

template_component_plugin_y_n.sql - Plugin installation script
y_n.css - CSS styling file
plugin_y_n_en.md - This blog post (English)
plugin_y_n_es.md - Blog post (Spanish)

Y/N Template Component Plugin for Oracle APEX
